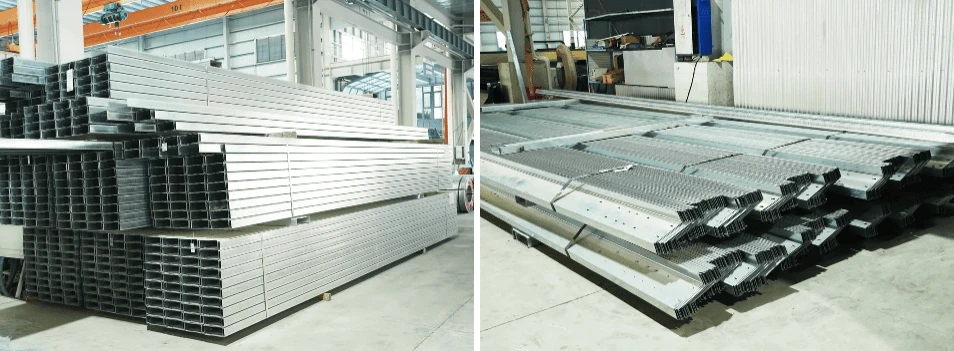

Peb C thiab Z purlins yog cov tswv cuab tseem ceeb hauv cov txheej txheem thib ob, muab kev txhawb nqa tseem ceeb rau kev tsim cov haujlwm. Engineered rau precision thiab fabricated los ntawm siab - steel muaj zog, cov purlins no ua kom pom lub zog thiab ruaj khov rau lub ru tsev thiab phab ntsa. Muaj nyob rau hauv ntau yam ntawm qhov ntev thiab configurations, lawv muab cov versatility xav tau kom tau raws li ntau yam kev tsim kho. Nrog rau lawv cov kev ua haujlwm ruaj khov, peb C thiab Z purlins lav kev txhawb nqa kev ntseeg siab, txhim kho kev ncaj ncees ntawm txhua qhov chaw.
Specification ntawm CZ Steel Purlins
| cov khoom |
 C hlau Purlins |
 Z hlau Purlins |
| Khoom siv | High tensile steel (G550, G350) | High tensile steel (G550, G350) |
| Qib Steel | ASTM A572, A36, IS 2062 | ASTM A572, A36, IS 2062 |
| Txheej | Galvanized (Z275, Z450) | Galvanized (Z275, Z450) |
| Thickness (hli) | 1.2mm-3.2 hli | 1.2mm-3.2 hli |
| Dav (mm) | 100-300 hli | 100-300 hli |
| Flange Dav (mm) | 40mm-80mm | 40mm-80mm |
| Lip Loj (mm) | 15mm-25mm | 15mm-25mm |
| Ntev (m) | Customizable | Customizable |
| Yield zog (MPa) | 350MPa - 550MPa | 350MPa - 550MPa |
| Punching (Qhov) | Raws li kev xav tau | Raws li kev xav tau |
| Daim ntawv thov | Ru tsev purlins, phab ntsa girts, mezzanine pem teb | Ru tsev purlins, phab ntsa girts, mezzanine pem teb |
| Tus Qauv Zoo | C-zoo li | Z-zoo li tus (zoo dua lapping muaj peev xwm) |
| Qhov hnyav (kg / m) | Nws txawv raws qhov loj & tuab | Nws txawv raws qhov loj & tuab |
Fouctions & Qhov zoo ntawm CZ Steel Purlins
Fouctions ntawm CZ Steel Purlins
1.Roofing Support:Lawv muab cov qauv txheej txheem los txhawb cov ntaub ntawv vov tsev, hloov lub ru tsev loads rau thawj cov tswv cuab xws li kab teeb thiab kab.
2.Load Distribution:Purlins pab faib cov khoom thauj los ntawm lub ru tsev panels mus rau lub hauv paus txheej txheem framing, kom ntseeg tau tias qhov hnyav hnyav thiab txo qhov kev pheej hmoo ntawm kev ua haujlwm tsis zoo.
3. Kev ruaj ntseg: Lawv pab txhawb rau tag nrho kev ruaj ntseg ntawm lub ru tsev system, tiv thaiv distortion thiab tswj kev ncaj ncees.
Qhov zoo ntawm CZ Steel Purlins
1.Tus nqi-Kev ua tau zoo:Purlins muab kev xaiv kev lag luam rau kev txhawb nqa lub ru tsev thiab phab ntsa, txo cov nqi tsim kho tag nrho.
2. Lub teeb: Lawv lub teeb yuag ua rau lawv yooj yim rau kev daws thiab teeb tsa, yog li ua kom lub sijhawm tsim kho sai.
3.Versatility:Purlins tuaj yeem siv rau hauv ntau yam kev teeb tsa thiab yooj yim yoog rau ntau hom kev tsim vaj tsev.
Qhov sib txawv ntawm C Steel Purlins thiab Z Steel Purlins
1.Cross-Sectional Shape
C hlau Purlins
Tus ntoo khaub lig-sectional duab zoo ib yam li tsab ntawv "C," uas muaj cov qauv sib luag nrog kev qhib qhov profile uas feem ntau cov flanges feem ntau yog ntawm 90-degree kaum sab xis ntawm lub vev xaib.

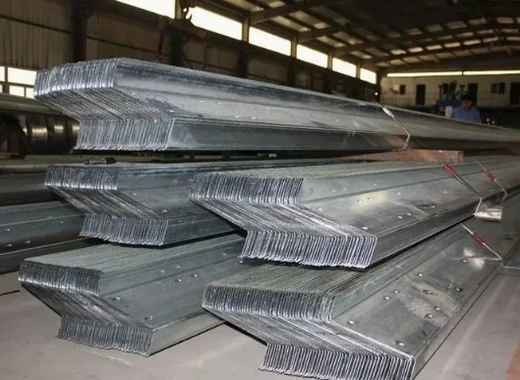

Z hlau Purlins
Tus ntoo khaub lig-sectional shape zoo li tsab ntawv "Z," uas muaj ob lub flanges inverted nrog daim di ncauj feem ntau angled hauv qab 90 degrees, feem ntau ntawm 60 thiab 75 degrees. Lawv tsim nyog rau cov qauv ntev -span.
2.Load-Bearing Capacity
C hlau Purlins
Qhov zoo tshaj plaws rau luv luv -span tsev, C-purlins xa cov kev ua haujlwm ruaj khov nyob rau hauv cov khoom sib xws.
Z hlau Purlins
Haum rau hnyav-load lossis ntev- ncua qauv, Z- purlins muab siab dua torsional thiab flexural txhav, ua rau lawv txhawb nqa ntau dua nrog kev txhawb nqa tsawg dua.
3.Txoj kev txhim kho
C Steel Purlins Erection
1.Xaiv lub installation layout thiab sib nrug.
2. Kho cov cleat daim hlau mus rau qhov kev txhawb nqa tseem ceeb.
3.Txhim lub C-purlins rau cov cleats siv bolts.
4.Ua kom cov purlins raug raws thiab cov kav dej.
Z Steel Purlins Erection
1.Kev txiav txim siab qhov chaw thiab qhov sib nrug ntawm kev sib txuas lapped.
2.Lap Z-purlins raws li lub khw kos duab.
3.Ua kom ruaj ntseg ntawm thaj chaw lapped siv bolts thiab purlin cleats.
4.Install sag rods thiab kab pheeb ces kaum bracing.
5.Saib xyuas qhov kev sib tw thiab kev ruaj ntseg ntawm thaj chaw lapped.
4.Erection Accessories
Muaj qhov sib txawv tseem ceeb hauv cov khoom tshwj xeeb uas xav tau rau kev txhim kho ntawm C steel purlins thiab Z steel purlins:
Txhawb Cov Cheebtsam
C hlau Purlins:
1. Purlin Cleats:Cov khoom txhawb nqa tseem ceeb rau C-purlins, feem ntau tsau rau ntawm cov qauv steel kab lossis cov phab ntsa.
2.Purlin Rooj:Txuas ncaj qha nrog C-purlins los muab cov rooj zaum ruaj khov.
Z Steel Purlins:
1.Primary Supports:Ntxiv cov txheej txheem framing feem ntau yog teev kom haum raws li tus qauv tsim ntawm Z-purlins, ua kom muaj kev sib txuas ruaj ntseg.
2.Lap-Txhawb cov tswv cuab:Tsim tshwj xeeb los txhawb cov lapped aav ntawm Z-purlins, lav tag nrho cov qauv kev ruaj ntseg.
01
Fasteners
C hlau Purlins:
1. Bolts:Siv los kho C-purlins rau cov qauv kev txhawb nqa thawj, feem ntau yog siv ua ke nrog purlin cleats lossis rooj zaum.
2. Kev sib txuas daim hlau:Siv hauv cov ntawv thov tshwj xeeb kom ruaj ntseg C-purlins rau lwm tus tswv cuab.
Z Steel Purlins:
1.Lap Bolts:Siv los tiv thaiv thaj chaw lapped ntawm Z-purlins, kom ntseeg tau tias muaj kev sib txuas ntawm cov tswv cuab.
2. Lub kaum ntse ntse:Siv los txhim kho kev ruaj ntseg kev sib txuas ntawm Z-purlins thiab lwm yam khoom siv, tshwj xeeb tshaj yog nyob rau hauv cov ntsiab lus lapels.
02
Cov khoom siv txhawb zog
C hlau Purlins:
1.Stiffeners:Nyob rau hauv daim ntawv thov nrog ntev spans los yog ntau dua loads, ntxiv stiffeners yuav tsum tau ntxiv loads - bearing muaj peev xwm.
2.Reinforceing daim hlau:Siv los ua kom lub zog thiab ruaj khov ntawm C-purlins.
Z Steel Purlins:
1.Stiffeners:Feem ntau siv los txhim kho torsional kev ua tau zoo ntawm Z-purlins, tshwj xeeb tshaj yog nyob rau hauv daim ntawv thov ntev -span.
2.Lateral Bracing Members:Txhim kho qhov ruaj khov ntawm Z-purlins, tiv thaiv kev cuam tshuam hauv kev thauj khoom.
03
End Components
C hlau Purlins:
1.End daim hlau:Siv los kaw qhov kawg ntawm purlins.
2.End Fixing Bolts:Ruaj ntseg kev sib txuas ntawm purlin kawg thiab cov qauv kev txhawb nqa thawj.
Z Steel Purlins:
1.End Support Cheebtsam:Vim lub inclined geometry ntawm Z-purlins, tshwj xeeb kawg kev txhawb nqa Cheebtsam yog feem ntau yuav tsum tau kom stabilize lub purlin installation.
2.Lap End Phaj:Siv los tswj cov lapped kawg ntawm Z-purlins, kom ntseeg tau tias muaj kev sib txuas.
04
5. Daim ntawv thov
1. Lub teeb nyhav:Siv rau lub ru tsev thiab phab ntsa thav duab hauv qhov yooj yim -rau-nruab lub tsev, xws li me me - cov nroj tsuag, warehouses, cov chav tsev, thiab cov ru tsev nyob.
2.S luv luv:Haum rau luv -span ru tsev systems.
3.Tus nqi-Kev xaiv zoo:Qhov zoo tshaj plaws rau kev siv nyiaj -cov haujlwm tseem ceeb txhawm rau txo cov khoom siv thiab cov nqi tsim kho.
1.Long-Span Buildings:Siv rau lub ru tsev thiab phab ntsa nyob rau hauv loj -cov qauv xws li cov nroj tsuag, chaw ntau pob, thiab chaw ua yeeb yam.
2.Complex Structures:Z-purlins xa cov khoom sib xws, ntau- kev txhawb nqa kev taw qhia, txhim kho tag nrho kev ruaj ntseg thiab kev nyab xeeb ntawm cov qauv txheej txheem.
3.High-Thov Projects:Kev tsim tshwj xeeb rau cov vaj tse uas yuav tsum tau tiv taus huab cua huab cua, kev ua seismic, thiab lwm yam kev puas tsuaj ntuj tsim.
Qhov ntau thiab tsawg ntawm CZ Steel Purlins
Peb muab tag nrho cov qauv C-purlins (C80-C300) thiab Z{10}}purlins (Z100-Z300). Tshaj li qhov ntau thiab tsawg, peb ua tau zoo hauv kev sib sib zog nqus customization raws li koj cov duab kos duab engineering. Txawm hais tias nws yog qhov tshwj xeeb ntawm qhov loj me, cov tuab tshwj xeeb (1.5mm-3.0mm), lossis cov qauv xuas nrig ntaus, peb cov kab ntau lawm CNC xa cov high-precision, "tailor-made" cov qauv kev daws teeb meem rau koj qhov project.
Common C Steel Purlins Loj
| Loj (Inches) | Loj (hli) | Sau ntawv |
| 2 x 3 | 50 x 75 | Ib qho ntawm qhov ntau thiab tsawg |
| 2 x 4 | 50 x 100 | Ib qho ntawm qhov ntau thiab tsawg |
| 2 x 6 | 50 x 150 | Ib qho ntawm qhov ntau thiab tsawg |
| 2 x 8 | 50 x 200 | Ib qho ntawm qhov ntau thiab tsawg |
| 4 x 4 | 100 x 100 | Haum rau cov khoom hnyav dua |
| 4 x 6 | 100 x 150 | Haum rau cov khoom hnyav dua |
| 6 x 4 | 150 x 100 | Haum rau qhov loj dua |
| 6 x 6 | 150 x 150 | Haum rau qhov loj dua |
| 8 x 8 | 200 x 200 | Haum rau ntxiv - loj spans |
Common Z Steel Purlins Qhov ntau thiab tsawg
| Loj (Inches) | Loj (hli) | Sau ntawv |
| 2 x 3 | 50 x 75 | Ib qho ntawm qhov ntau thiab tsawg |
| 2 x 4 | 50 x 100 | Ib qho ntawm qhov ntau thiab tsawg |
| 2 x 6 | 50 x 150 | Ib qho ntawm qhov ntau thiab tsawg |
| 2 x 8 | 50 x 200 | Ib qho ntawm qhov ntau thiab tsawg |
| 4 x 4 | 100 x 100 | Haum rau cov khoom hnyav dua |
| 4 x 6 | 100 x 150 | Haum rau cov khoom hnyav dua |
| 6 x 6 | 150 x 150 | Haum rau qhov loj dua |
| 8 x 6 | 200 x 150 | Haum rau ntxiv - loj spans |
Fabrication txheej txheem ntawm CZ Steel Purlins
Peb C / Z purlin ntau lawm chaw cia siab rau tag nrho automated CNC ntau lawm kab. Los ntawm kev sib koom ua ke txiav- ntug yob- ua tshuab nrog cov kev tswj hwm digital, peb ua tiav cov khoom lag luam precision los ntawm cov khoom siv raw mus rau cov khoom tiav. Txhua lub purlin tau dhau los ua kom muaj kev ntxhov siab nyuaj thiab geometric calibration, kom ntseeg tau tias muaj kev thauj khoom zoo tshaj -cov kabmob kev ua tau zoo thiab kev teeb tsa kev sib raug zoo hauv cov qauv kev tsim vaj tsev.
1. Decoiling & pub
High-lub zog galvanized steel coils raug xaiv los xyuas kom meej corrosion kuj zoo heev thiab cov qauv kev ncaj ncees.
2. Precision Leveling
Multi-roller levelers tshem tawm cov kev ntxhov siab sab hauv hauv steel sawb, ua kom lub ntsej muag tiaj tus thiab siab linearity ntawm cov khoom kawg.
3. CNC Tsis Siv Neeg Punching
Lub CNC system xyuas kom meej qhov chaw rau kev xuas nrig ntaus online, lav qhov zoo meej haum rau lub qhov ntsia hlau thaum lub sijhawm teeb tsa.
4. Txias yob txoj kev
Advanced txias- tsim tshuab nrog ceev C / Z profile hloov ua kom paub meej cov kaum sab xis thiab sib xws - ntu ntu.
5. Tsis siv neeg txiav kom ntev
Lub kaw lus hydraulic txiav cov purlins mus rau qhov ntev nrog lub tiaj, burr -dawb xaus, khaws cia kev ncaj ncees ntawm galvanized txheej.
6. Kev soj ntsuam zoo & ntim
Tom qab kev soj ntsuam nruj me ntsis rau qhov ntev thiab txheej txheej, cov khoom tau ntim thiab ruaj ntseg rau kev thauj mus los nyab xeeb.

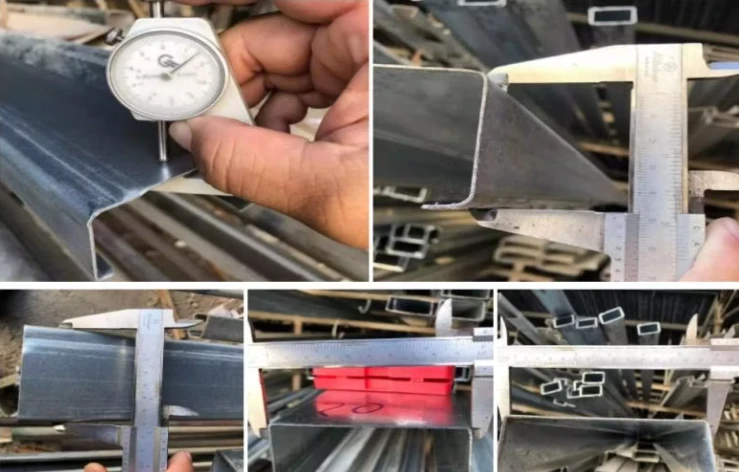

Peb Kev Tswj Xyuas Zoo
Peb siv cov txheej txheem QC nruj rau txhua C / Z purlin. Los ntawm cov khoom siv raw mus rau cov khoom tiav, peb siv siab -cov cuab yeej precision rau kev txheeb xyuas qhov loj me, kom ntseeg tau tias txhua qhov ntsuas qhov sib txuam ntawm cov duab kos duab zoo kawg nkaus thiab tshem tawm txhua qhov sib txawv.
1. Thickness raug:Micrometer kuaj xyuas kom tseeb thickness raws li cov qauv nrog xoom tsis zoo kam rau ua.
2.Dimensional Verification:Ntau -point caliper ntsuas ntawm lub vev xaib thiab flange qhov ntau thiab tsawg ua kom muaj kev sib raug zoo nrog cov duab kos duab.
3.Strict Tolerance:Kev ua raws cai nruj me ntsis rau ± 1mm kam rau ua kom muaj seamless ntawm - qhov chaw sib dhos.
4.100% Kev soj ntsuam:Txhua batch tau soj ntsuam nruj kom paub meej 100% kev tsim nyog ua ntej xa khoom.
Peb Cov Txheej Txheem Kev Pabcuam
Peb tau cog lus tias yuav muab tag nrho - kev pab cuam lub neej los ntawm kev tsim qauv tsim rau ntawm - qhov chaw teeb tsa. Los ntawm kev koom ua ke kev txhawb nqa engineering nrog CNC precision manufacturing, peb xa tsis tau tsuas yog siab - zoo C / Z purlins tab sis kuj pob tshab thiab kev tswj cov txheej txheem ua tau zoo, kom ntseeg tau tias txhua qhov haujlwm ua tiav raws sijhawm thiab nrog qhov tseeb tseeb.
1. Yooj yim tsim & nthuav dav
Txawm hais tias koj muaj cov duab kos lossis tsis yog, peb pab pawg engineering tuaj yeem cuam tshuam seamlessly. Peb muab cov kev pab cuam tsim los xyuas kom meej purlin specifications haum txig nrog koj tus qauv qauv.
2. Transparent Commercial Assurance
Peb muab cov lus pom zoo sib tw raws li kev suav cov nqi raug. Kev tsim khoom pib tam sim ntawd thaum kos npe rau daim ntawv cog lus thiab tso nyiaj pom zoo, kom ntseeg tau qhov kev nruj thiab qhov tseeb ntawm txhua qhov kev pom zoo.
3. Precision Manufacturing & Secure Logistics
Kev txiav txim nkag mus rau peb cov kab ntau lawm CNC tshuab raws li cov qauv kev tswj xyuas nruj. Ua ke nrog cov txheej txheem export ntim thiab txhim khu kev qha shipping, peb xyuas kom cov khoom ncav cuag lawv cov hom phiaj yam tsis muaj deformation lossis corrosion.
4. Chaw Xa Khoom & Kev Pabcuam
Peb qhov kev pabcuam txuas mus rau theem kawg ntawm kev tsim kho. Peb pab nrog kev lis kev cai clearance thiab muab kev xaiv kev engineering kev taw qhia los pab cov neeg muas zaub ua tiav rau ntawm - qhov chaw sib dhos thiab qhov project xa tau zoo.

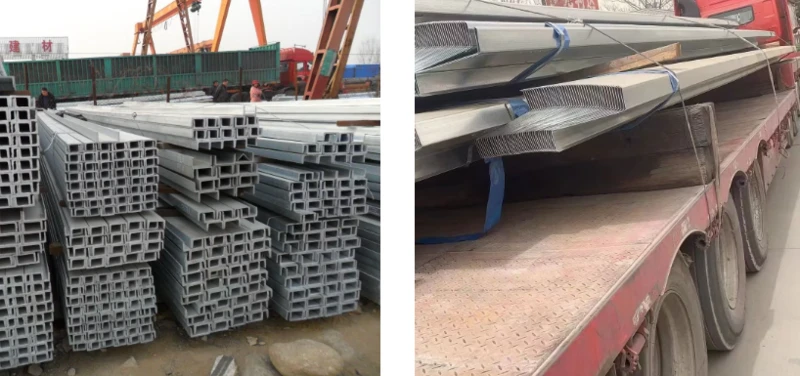

Ntim & Xa ntawm CZ Steel Purlins
(1) Kev tiv thaiv nto:Purlins feem ntau yog qhwv nrog PVC lossis yas zaj duab xis los tiv thaiv khawb thiab xeb thaum lub sijhawm thauj mus los.
(2) Bundling:Standard ntev (feem ntau yog 5 mus rau 12 meters) yog bundled siv high -strength steel strapping los yog nylon bands.
(3) Container Securing:Cov pob khoom tau ruaj khov rau hauv cov thawv dej hiav txwv lossis ntawm cov tsheb thauj khoom uas siv cov hlua hlau thiab cov hlua khi kom tiv thaiv kev txav mus los.
FAQ:
Kuv puas tuaj yeem sib xyaw C thiab Z ntu hauv ib lub ru tsev?
Yog - peb teem sijhawm ob qho tib si ntawm tib qhov kev tsim khoom thiab ntim lawv rau ib cheeb tsam, yog li lub ru tsev uas siv C rau phab ntsa girts thiab Z ntev -span ru tsev khiav nkoj ua ib qho cim - phooj ywg teeb.
Kuv tsis muaj daim duab C/Z - koj puas tseem tuaj yeem ua rau kuv?
Yog lawm. Xa ib qhov layout lossis ib lub ru tsev npaj thiab peb cov engineers teeb ntu, ncua, qhov sib nrug thiab qhov qauv rau koj tus qauv thawj, tom qab ntawd nthuav dav nws mus rau daim ntawv pov thawj txiav rau koj qhov kev pom zoo.
Ntev npaum li cas koj tuaj yeem tsim tau?
Cov tswv cuab raug tsim los rau lub thawv - tus phooj ywg ntev - txog li 5.8 m ntawm 20 ft thiab 11.8 m ntawm lub thawv 40 ft; peb paub meej tias ntev tiv thaiv koj txoj kev npaj thauj khoom.
Koj puas lees txais cov xaj me me, thiab lub sijhawm ua haujlwm yog dab tsi?
Me me -Kev txiav txim kom muaj nuj nqis tau txais. Kev cai- txiav thiab xuas nrig ntaus khiav ntawm CNC kab thaum daim duab pom zoo; standard ranges nkoj sai dua.
Kuv yuav xaiv li cas ntawm Z275 thiab Z450 galvanizing?
Z275 suits ib txwm qhuav-rau- kis nruab nrab; xaiv Z450 rau cov av noo, ntug hiav txwv dej los yog txaws- cov chaw uas muaj cov zinc txheej thicker txuas ntxiv lub neej kev pab cuam. Qhia rau peb ib puag ncig thiab peb paub meej tias cov txheej txheem.
