Fasteners







Steel qauv fasteners yog ntsia liaj qhov rooj sib dhos - sib tw bolts, txiv ntseej, thiab cov tshuab ntxhua khaub ncaws - tsim kom nruj txhua yam thiab cov qauv kev nyab xeeb rau kev nyab xeeb- kev sib txuas tseem ceeb hauv cov tsev steel, txuas hniav, thiab cov kav hlau txuas. Ob hom kev sib txuas siv tau: bearing- hom, qhov twg bolts dais tiv thaiv daim hlau txuas (thib ob framing, purlins), thiab plam- tseem ceeb, qhov twg ua ntej-tensioned bolts clamp ob leeg nto tiv thaiv kev thim rov qab lossis qaug zog loads (thawj kab teeb - rau-kem txuas). Ua ntej-tensioning yog ua tiav los ntawm torque-tswj lossis twist{10}}tawm bolts (F1852).



Cov qauv muaj xws li ASTM F3125 (A325 / A490 / F1852 hnyav hex qauv bolts), F1554 ( thauj tog rau nkoj bolts), EN 14399, thiab GB / T 1228-1231. Qib ntau ntawm 4.8 txog 10.9 / 12.9. Txheej yuav tsum sib npaug qib thiab ib puag ncig: kub-dip galvanizing txog li 8.8 (kev tiv thaiv corrosion), dacromet / mechanical galvanizing rau 10.9+ (kev tiv thaiv hydrogen embrittlement).







GNEE tsim cov txheej txheem bolt sib dhos rau plaub tus qauv hauv qab no. Txhua tus qauv tswj hwm lub lag luam hauv cheeb tsam tshwj xeeb - qib tsis hloov pauv. Siv cov ntaub ntawv no kom phim koj qhov project specification rau tus qauv thiab qib raug.



Txuj	Keeb kwm	Qib	Min. Tensile	Daim ntawv thov
ASTM F3125 A325 Cov Lus Qhia	North America	—	120 ksi (827 MPa)	Bolted steel pob qij txha, lub tsev thav duab, txuas hniav
ASTM F3125 A490 Cov Lus Qhia Tshwj Xeeb	North America	—	150 ksi (1040 MPa)	High -lub zog thawj kev sib txuas, hnyav trusses
ASTM F3125 F1852 Cov Lus Qhia	North America	—	120 ksi (827 MPa)	Twist -tawm ntsia liaj qhov rooj rau plam- kev sib txuas tseem ceeb
ASTM F1554 Cov Lus Qhia	North America	36 / 55 / 105	60/75/125 tsi	Anchor bolts rau foundation anchoring
TS EN 14399 HR	Teb chaws Europe	8.8 / 10.9	800/1040 MPa	European - qauv qauv bolting
TS EN 14399 HV	Teb chaws Europe	10.9	1040 MPa	Hex-socket assemblies rau ua ntej-tensioned pob qij txha
GB/T 1228–1231	Tuam Tshoj	8.8s / 10.9s	800/1040 MPa	Suav - qauv steel qauv, choj
TS EN ISO 898-1	Thoob ntiaj teb	4.8–12.9	400-1220 MPa	Mechanical property baseline rau txhua qib







Kev xaiv tus txheej txheem fastener yog peb - kauj ruam kev txiav txim: lub taub hau style thiab tsav txoj kev, cov khoom siv, ces qib thiab kev kho deg. Txhua kauj ruam nqaim qhov kev xaiv kom haum rau koj hom kev sib txuas, kev xav tau ntawm kev thauj khoom, thiab kev pabcuam ib puag ncig.



Head Styles & Drive Methods



Nyob rau hauv cov qauv bolting, lub taub hau style txiav txim siab clamp load faib thiab installation tooling. Rau hom hauv qab no suav nrog feem ntau ntawm cov qauv hlau sib txuas.



Lub taub hau Style		Tsav txoj kev	Kev siv tus qauv

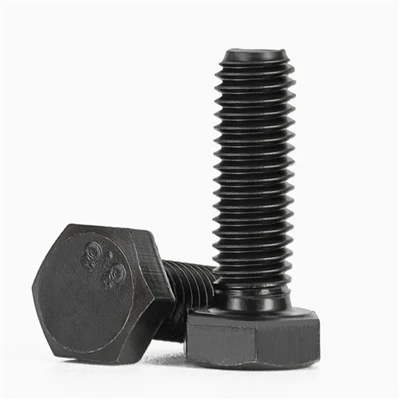

Hnyav Hex		Hydraulic torque wrench los yog phom phom	ASTM F3125 A325 / A490 thawj kev sib txuas - dav bearing nto faib clamp load hla cov kev sib txuas
Twist -Tawm (TC) F1852		Hluav taws xob TC ntsia liaj qhov rooj phom; spline txiav tawm ntawm lub hom phiaj pretension	Slip-tseem ceeb thiab ua ntej- kev sib txuas tensioned — teb-tsim pov thawj, tsis xav tau torque calibration
Anchor Bolt		Wrench los yog txiv ntseej tsav; cam khwb cia-hauv lossis tho- hauv kev teeb tsa	ASTM F1554 foundation anchoring — L- khoov, J- khoov, los yog taub hau configurations rau kab pheeb ces kaum
Socket Cap		Allen Ntsiab (hex key)	Mechanical-qib kev sib txuas, lub hauv paus phaj fastening, thiab cov neeg ua haujlwm theem nrab; haum rau daim ntaub ntawv qhov twg lub taub hau compact cylindrical nrog hex socket tsav yog nyiam dua ib tug loj sab nraud hex taub hau
Countersunk		Phillips los yog hex socket	Architectural thiab pedestrian choj kev sib txuas qhov twg dej ntws yuav tsum tau rau kev zoo nkauj los yog clearance
Flange Bolt		Lub qhov (socket).	Kev sib txuas ntawm cov txheej txheem thib ob - kev sib xyaw flange faib cov khoom thauj yam tsis muaj lub tshuab ntxhua khaub ncaws, kev teeb tsa sai dua



Khoom siv



Cov khoom siv fastener yog xaiv los ntawm chav kawm muaj zog thiab kev pabcuam ib puag ncig. Plaub cov ntaub ntawv hauv qab no suav nrog cov ntawv thov steel qauv los ntawm kev sib txuas mus rau marine- qib kev sib txuas.



Khoom siv	Standard Reference	Hom Qib	Kev Pabcuam Ib puag ncig
Carbon Steel	ASTM F3125 A325, ISO 898-1 Kev Tswj Xyuas Kev Tswj Xyuas	4.8 / 8.8	Cov qauv kev sib txuas dav dav, sab hauv tsev lossis coated rau siv sab nraum zoov. Tus nqi qis, siab zog, yuav tsum tau txheej
Hlau alloy	ASTM F3125 A490, ISO 898-1 Kev Tswj Xyuas Kev Tswj Xyuas	10.9	Siab -lub zog thawj kev sib txuas, txuas hniav, hnyav trusses. Quenched & tempered; yuav tsum tau dacromet lossis mechanical galvanizing - tsis kub -dip galvanizing (hydrogen embrittlement risk)
Huab cua hlau	ASTM F3125 A325 Hom 3 / A490 Hom 3	8.8 / 10.9 equiv.	Atmospheric corrosion kuj txuam nrog A588 weathering steel qauv - cov ntaub ntawv tiv thaiv oxide txheej, tsis xav tau txheej
Stainless hlau 304	ASTM F593, A2-70	A2-70	Sab nraum zoov, khoom noj khoom haus, kev pabcuam corrosion. Tsis pom zoo rau chloride/marine raug

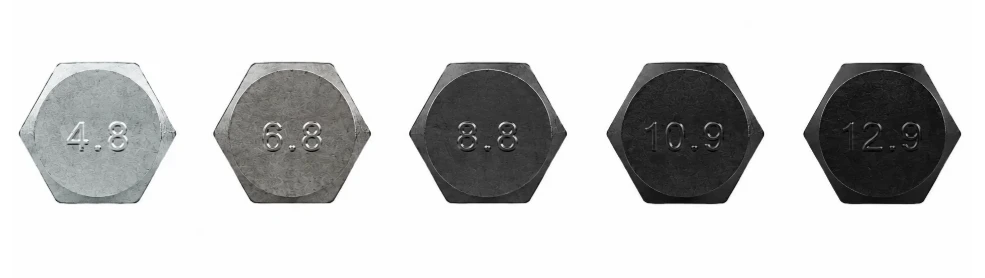

Qib & Nto Kho



Cov kauj ruam kawg sib tw rau qib fastener thiab txheej rau kev sib txuas cov kev xav tau ntawm kev thauj khoom thiab kev cuam tshuam ib puag ncig. Qib txiav txim siab tensile zog; Kev kho saum npoo txiav txim siab corrosion kuj thiab kev pab cuam lub neej.

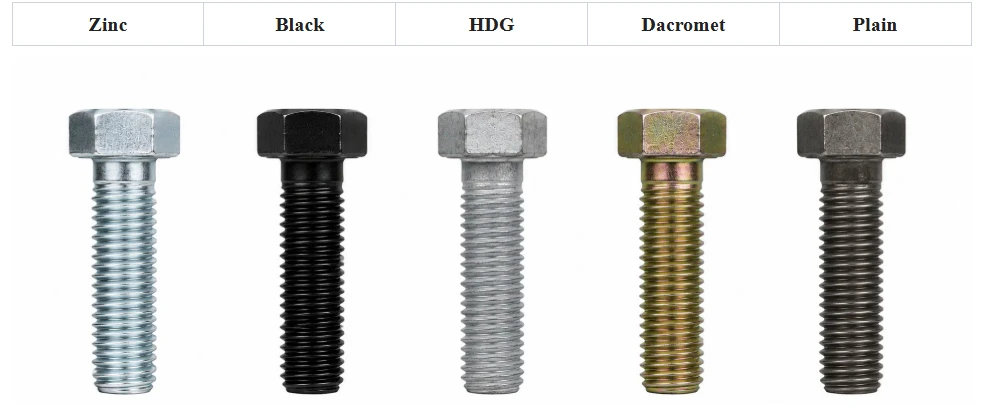

Txheej	Haum Qib	Ib puag ncig	Nco tseg
Dub / Dawb	4.8–12.9	Sab hauv, tiv thaiv cov qauv	Tus nqi qis tshaj, tsis muaj kev tiv thaiv corrosion
Zinc-Plated	4.8–8.8	Sab hauv lossis sab nraum zoov	Nyias txheej, txwv corrosion kuj
Kub-Dip Galvanizing	Mus txog 8.8	Sab nraum zoov, industrial, ntug hiav txwv dej	Cov txheej txheem hnyav, 50+ xyoo kev pab cuam lub neej nyob rau hauv feem ntau ib puag ncig
Dacromet / Mechanical Galvanizing	10.9–12.9	Sab nraum zoov, siab - siv zog	Hydrogen embrittlement muaj kev nyab xeeb rau siab - qib bolts
Huab cua hom 3	8.8 / 10.9 equiv.	Atmospheric corrosion zones, A588 steel qauv	Self-kho oxide txheej, tsis xav tau txheej

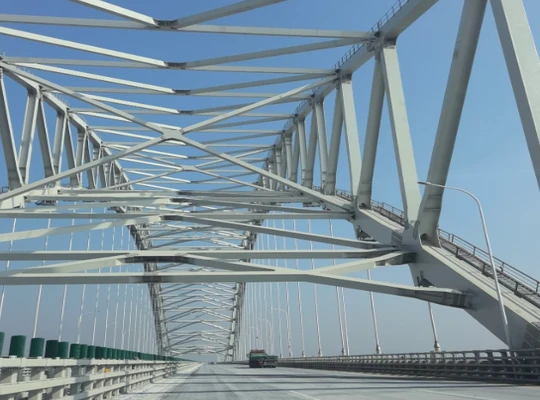

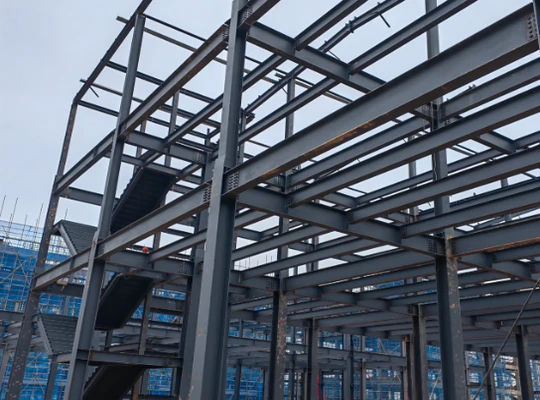

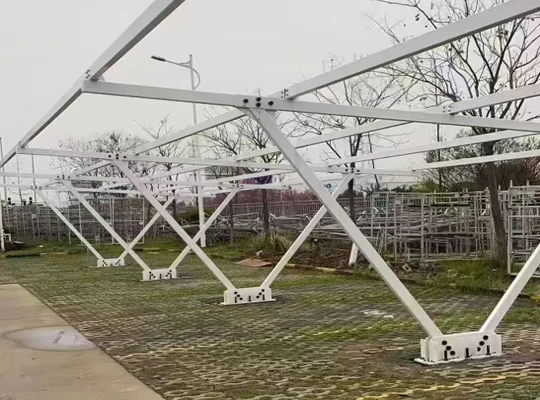

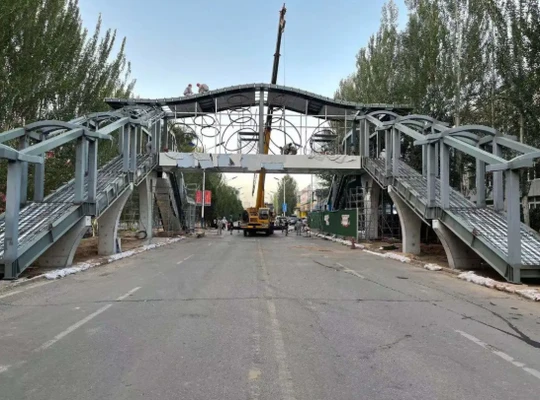

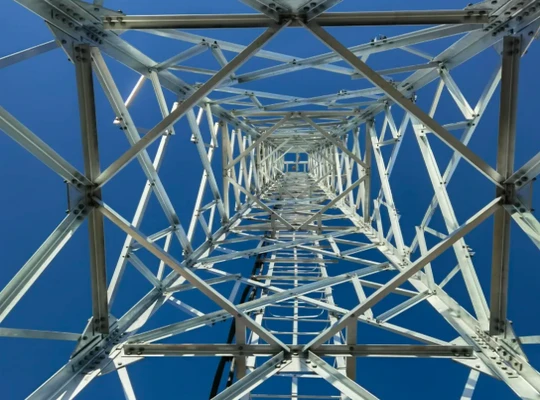

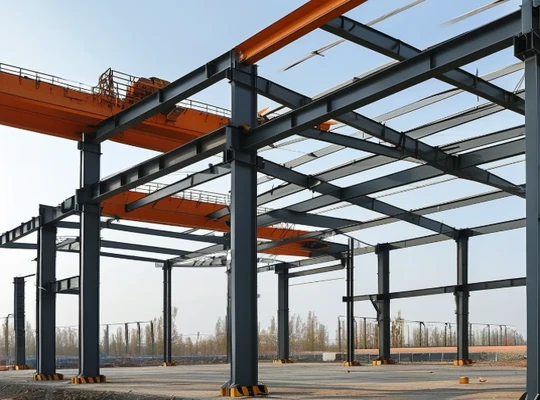

GNEE cov txheej txheem ntsia liaj qhov rooj tau raug xa tawm mus rau cov haujlwm thoob plaws Asia, Middle East, South America, thiab Africa - txhawb nqa siab -nce steel ncej, txuas txuas txuas, txuas hluav taws xob ntauwd, thiab cov chaw tsim khoom lag luam. Txhua qhov khoom xa tuaj sib tw raws li tus qauv, qib, thiab qhov chaw- cov txheej txheem tshwj xeeb xav tau los ntawm cov lej hauv zos thiab qhov project specs.





Peb steel qauv fasteners yog tsim los ntawm ib tug ua tiav nyob rau hauv - tsev ntau lawm system, los ntawm raw steel mus rau cov khoom tiav. Cov txheej txheem tsim khoom tseem ceeb suav nrog:







GNEE txheeb xyuas qhov zoo ntawm txhua theem tsim khoom - tsis yog ntawm kev tshuaj xyuas zaum kawg nkaus xwb. Txhua theem nqa nws tus qauv, txoj kev, thiab kev lees paub, nrog rau cov ntawv xeem (EN 10204 3.1) tawm rau ib pawg.



Theem	QC yam khoom	Txuj	Txoj kev
Raw Khoom	Tshuaj muaj pes tsawg leeg, mechanical zog	ASTM F3125, GB / T 3098.1, EN 10204 3.1	Spectrometer, tensile rau cua sov
tsim	Dimensions, nto tawg	TS EN ISO 4759-1	Thawj -kab lus + ib 200 pcs, MT
Xov	Pitch diameter, xov haum	ISO 965, GB / T 197	Mus/tsis yog- mus gauge rau ASTM F3125
Kev kho cua sov	Hardness, microstructure, tensile & pov thawj load	ASTM F3125, ISO 898-1 Kev Tswj Xyuas Kev Tswj Xyuas	HRC ib batch, tensile rau cub tawg, metallographic
Nto	Txheej thickness, hydrogen embrittlement, xov haum	ASTM F1941, A153	Magnetic gauge, HE test 10.9+, go-gauge
Kawg	Pov thawj load, tensile, wedge load, hardness, qhov ntev	ASTM F3125, EN 14399, ISO 898-1	EN 10204 3.1 MTC, qauv 2 xyoo, SGS/BV/TUV EN
Ntim	Labeling, tiv thaiv ya raws, cais	Sab hauv tus qauv	VCI + desiccant, tshav kub-number daim ntawv lo, thauj cov duab











Tshaj li qhov ntau thiab tsawg tus qauv, GNEE tuaj yeem tsim cov khoom tsis yog -tus qauv fasteners rau koj cov duab kos, cov qauv, lossis cov kev cai - nrog rau kev tswj xyuas thiab cov ntaub ntawv soj ntsuam.

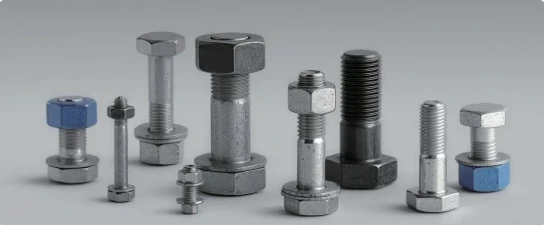

Tag nrho cov qauv steel fasteners tau ntim raws li kev sib koom ua ke (bolt + txiv ntseej + ntxhua khaub ncaws), sau rau tag nrho traceability, thiab xa nrog cov ntaub ntawv tiav kom ntseeg tau tias kev lis kev cai du thiab ntawm - qhov chaw teeb tsa.



Ntim & Shipping

Theem	Ntim Txoj Kev	Kev tiv thaiv
Bolting Assembly	Bolts, txiv ntseej, thiab cov ntxhua khaub ncaws tau ntim raws li cov khoom sib txuam ntawm ASTM F3125 - txhua chav muaj ib lub ntsia liaj qhov rooj, ib lub txiv ntoo, thiab cov ntxhua khaub ncaws uas yuav tsum tau ua, tshem tawm ntawm - qhov chaw tsis sib haum	—
Ntim Ntim	5-ply corrugated cartons (350-500 kg), woven hnab (25-50 kg), los yog lub hnab me me (1-5 kg) - xaiv los ntawm cov khoom loj thiab xaj ntim	Galvanized thiab dub nto ntim nrog VCI hnab thiab desiccant los tiv thaiv dawb xeb thiab av noo corrosion thaum lub sij hawm 30-45 hnub dej hiav txwv hla
Kev Tiv Thaiv Tshwj Xeeb	Threaded xaus, twist-tawm splines, thiab thauj tog rau nkoj bolt khoov yog tiv thaiv nrog lub hau yas los yog ntoo thaiv kom tsis txhob muaj kev puas tsuaj	Huab cua hom 3 qhov chaw ntim nrog xeb-cov ntawv txwv tsis pub khaws cov oxide txheej tiv thaiv
Palletizing & Loading	Cartons stacked ntawm ISPM-15 tshav kub- kho pallets (1,200 × 1,000mm los yog 1,100 × 1,100mm), shrink-wrapped thiab strapped rau lub thawv optimization	—

Lus Cim: Txhua pob ntawv sau nrog: cov khoom npe, tus qauv (ASTM F3125 / F1554 / GB), qib (A325 / A490 / 8.8 / 10.9), qhov loj (M), qhov ntau, ntau tus naj npawb, cov xov tooj cua sov, thiab lub npe qhov project.



Lub Sijhawm Lead

Qeb	Standard Lead Time	Custom Lead Time
Qhov ntau thiab tsawg (M12–M36, A325/A490/8.8/10.9)	15-25 hnub	25-35 hnub (tshwj xeeb txheej, ntim kev cai)
Tsis yog- qhov loj me (M36–M64)	25-35 hnub	30-45 hnub (kev cai threading, khoov, taub hau style)

Lus Cim: Lub sij hawm ua ntej yog xam los ntawm kev kos duab pom zoo thiab daim ntawv txais nyiaj tso nyiaj. Rush ntau lawm yog muaj raws li qhov kev thov.



Shipping Terms & Documentation

Yam khoom	Paub meej
Incoterms	FOB (Tianjin), CIF, DDP
Shipping Txoj Kev	FCL (20'GP / 40'GP / 40'HQ), LCL rau kev txiav txim me me, huab cua thauj khoom rau cov haujlwm ceev
Export Cov ntaub ntawv	Daim ntawv them nqi ua lag luam, cov ntawv ntim khoom (thaj chaw- theem kev tawg), daim nqi ntawm daim ntawv (B/L), daim ntawv pov thawj ntawm keeb kwm (CO)
Cov ntaub ntawv zoo	EN 10204 3.1 MTR ib batch, txheej thickness daim ntawv qhia, thib peb-tog soj ntsuam daim ntawv pov thawj (SGS / BV / TÜV)
Kev lis kev cai Clearance	Tag nrho cov ntaub ntawv export muab; thib peb-kev tshuaj xyuas los ntawm SGS, BV, lossis TÜV txhawb nqa
Ntau-Cov khoom sib koom ua ke	Kev sib koom ua ke nrog cov tswv cuab ntawm cov khoom siv hlau (kab, kab, kab, trusses, purlins, bracing) txhawm rau txhim kho tus nqi logistics rau tag nrho - kev yuav khoom

Nco tseg: Kev xa khoom sib koom ua ke nrog cov khoom siv hlau yog muaj los ua kom zoo dua cov nqi thauj khoom rau tag nrho - kev yuav khoom.







Raws li ib qho ntawm cov kws tshaj lij fasteners manufacturers thiab cov muag khoom nyob rau hauv Suav teb, peb muaj lub ntiaj teb no - cov khoom siv ntau lawm thiab muaj peev xwm tsim tau. Thov so assured mus yuav customized fasteners ntawm tus nqi sib tw los ntawm peb lub hoobkas. Rau cov lus hais, hu rau peb tam sim no.
